SAB ilGoblin Pro 520 *** PRE-ORDER ***

SAB ilGoblin Pro 520 *** PRE-ORDER ***

SKU: SG525

SAB

Regular price $688.00 USD
Regular price Sale price $688.00 USD
Sale Coming soon
Shipping calculated at checkout.

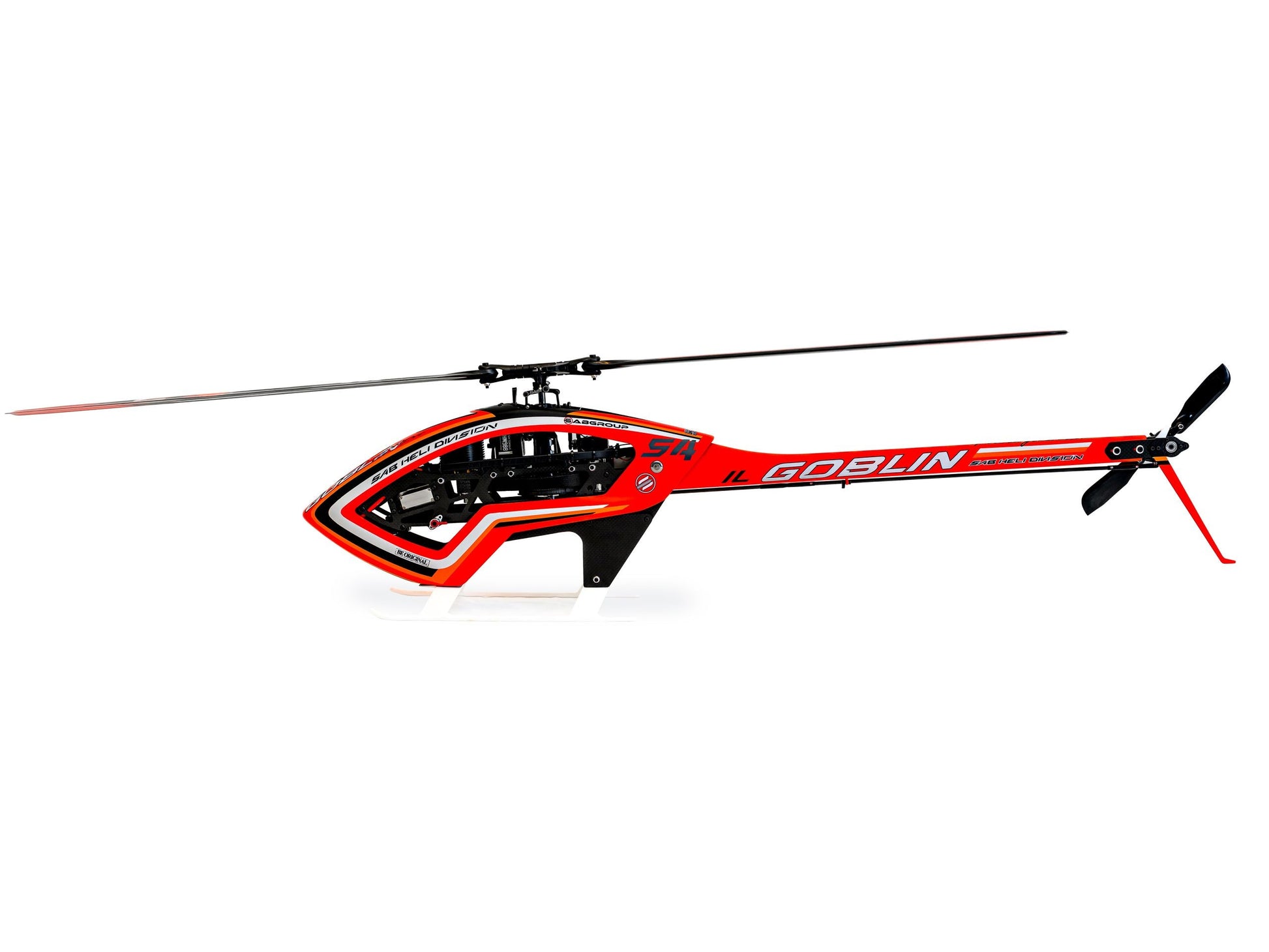

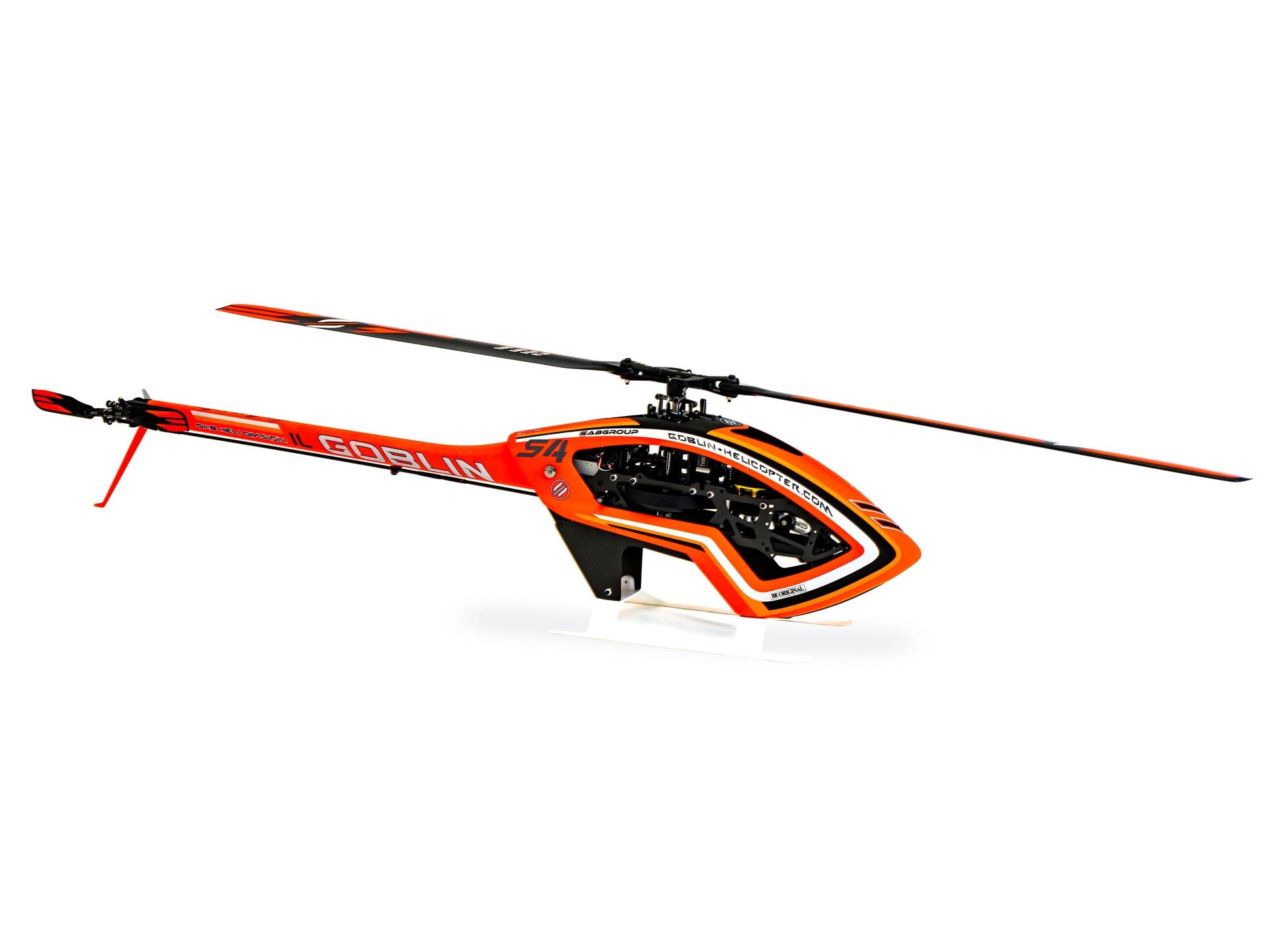

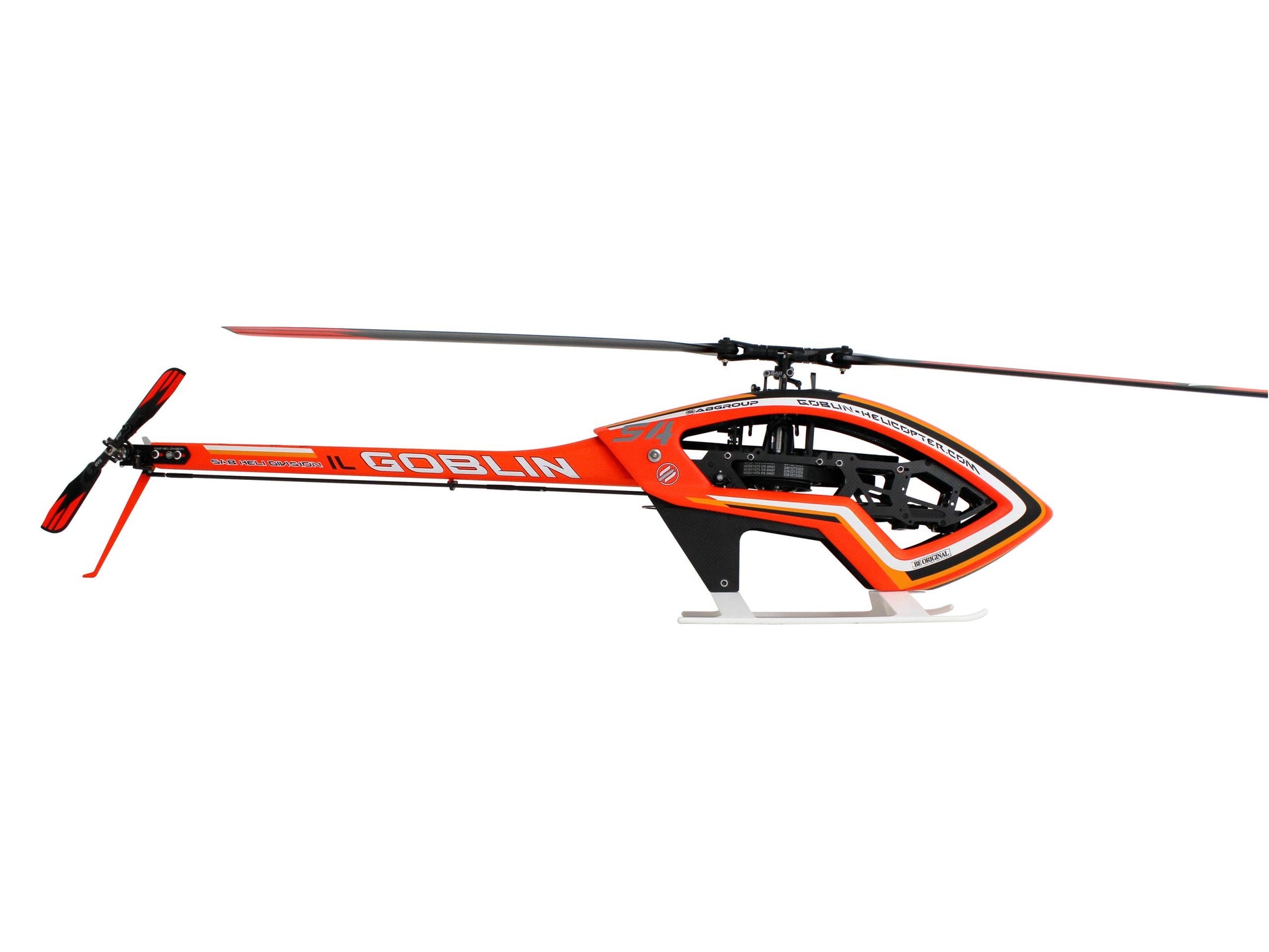

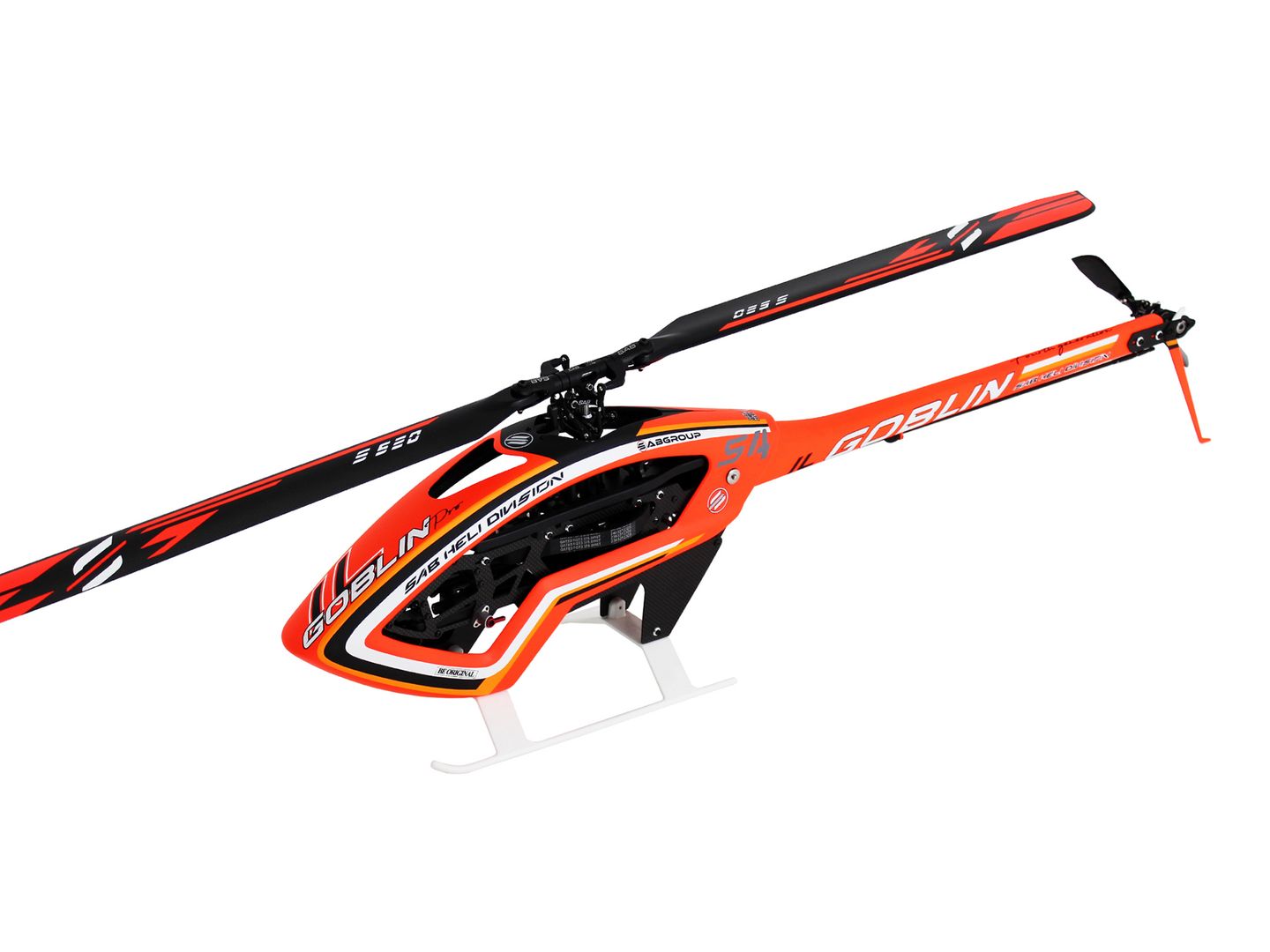

This new smaller version of the very popular ilGoblin Pro 700 is a fully upgraded version of the previous Raw 500 model featuring a fully moulded carbon fiber boom and new canopy design along with many other new features. The model ships with newly designed 520mm main blades.

Features:

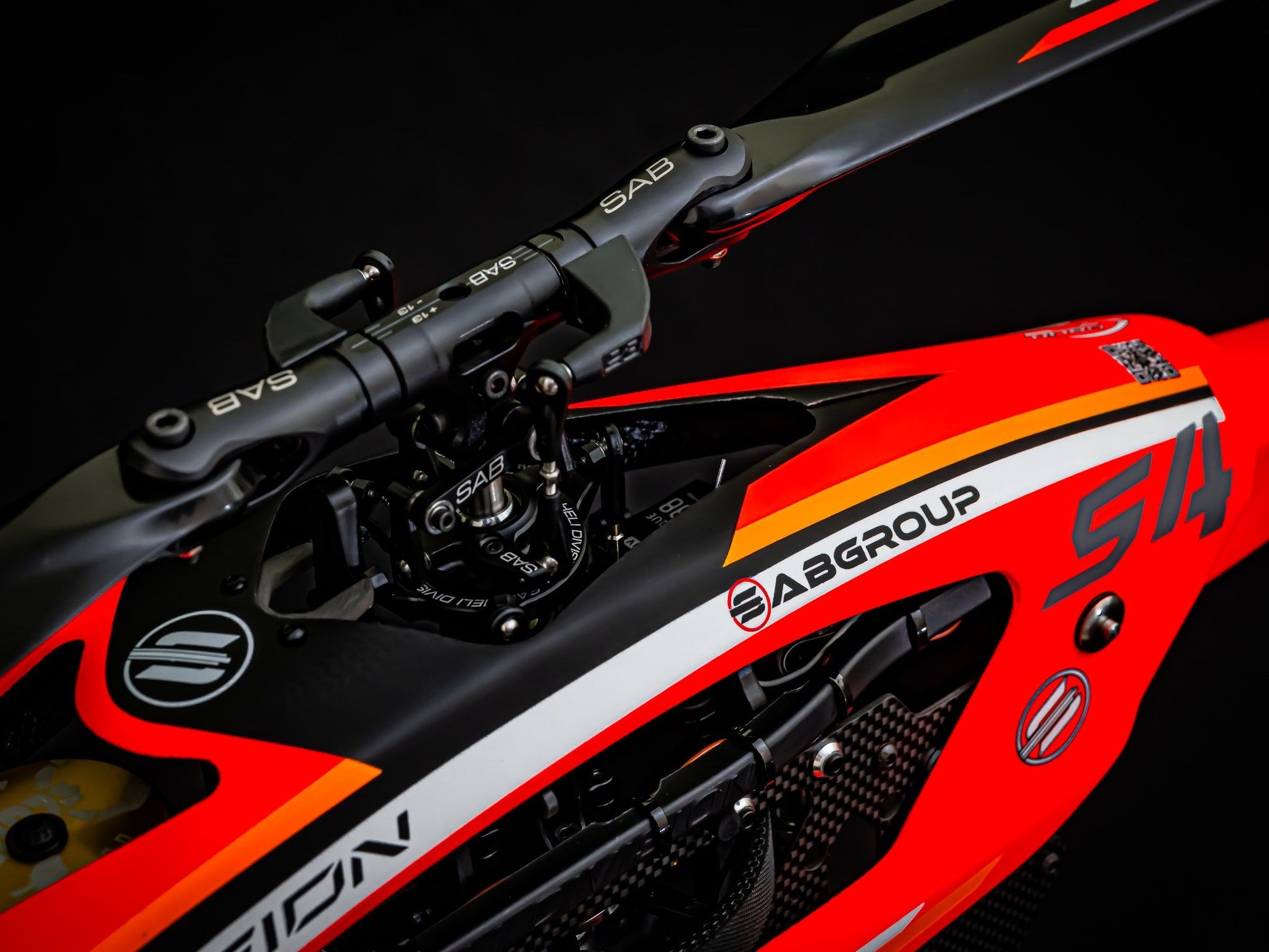

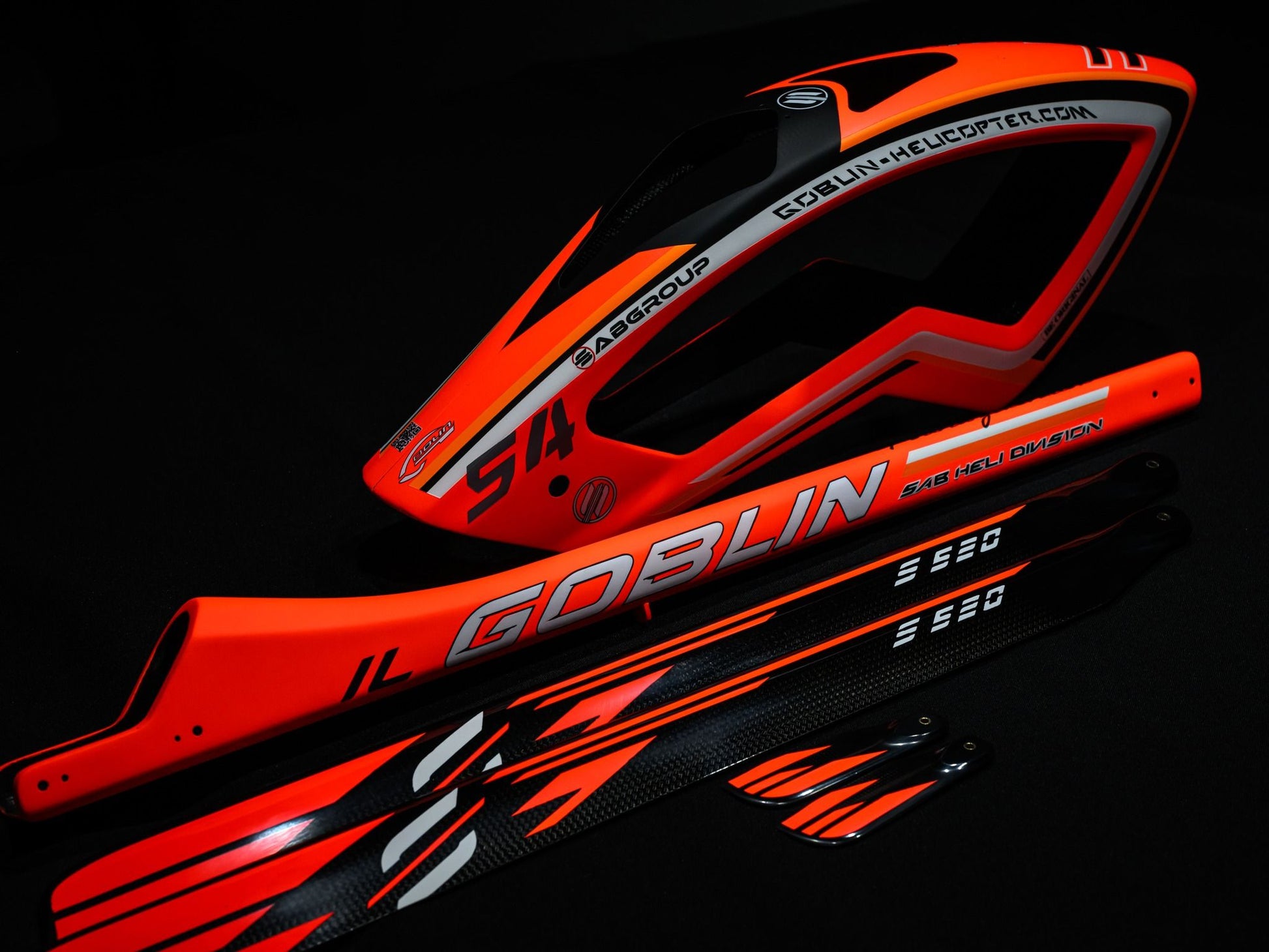

  • ilGoblin Pro Canopy/Boom shape
  • New, stronger one way bearing

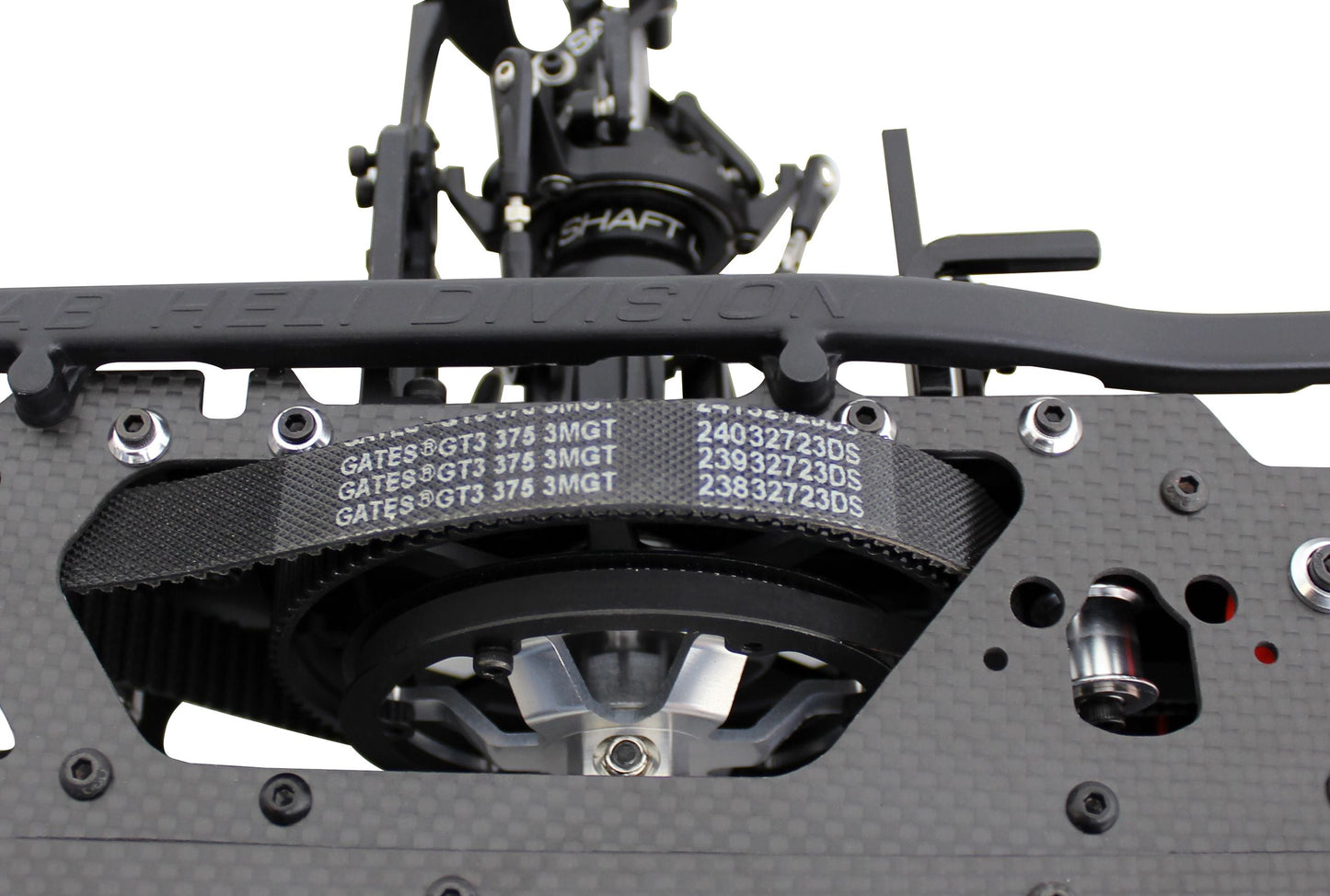

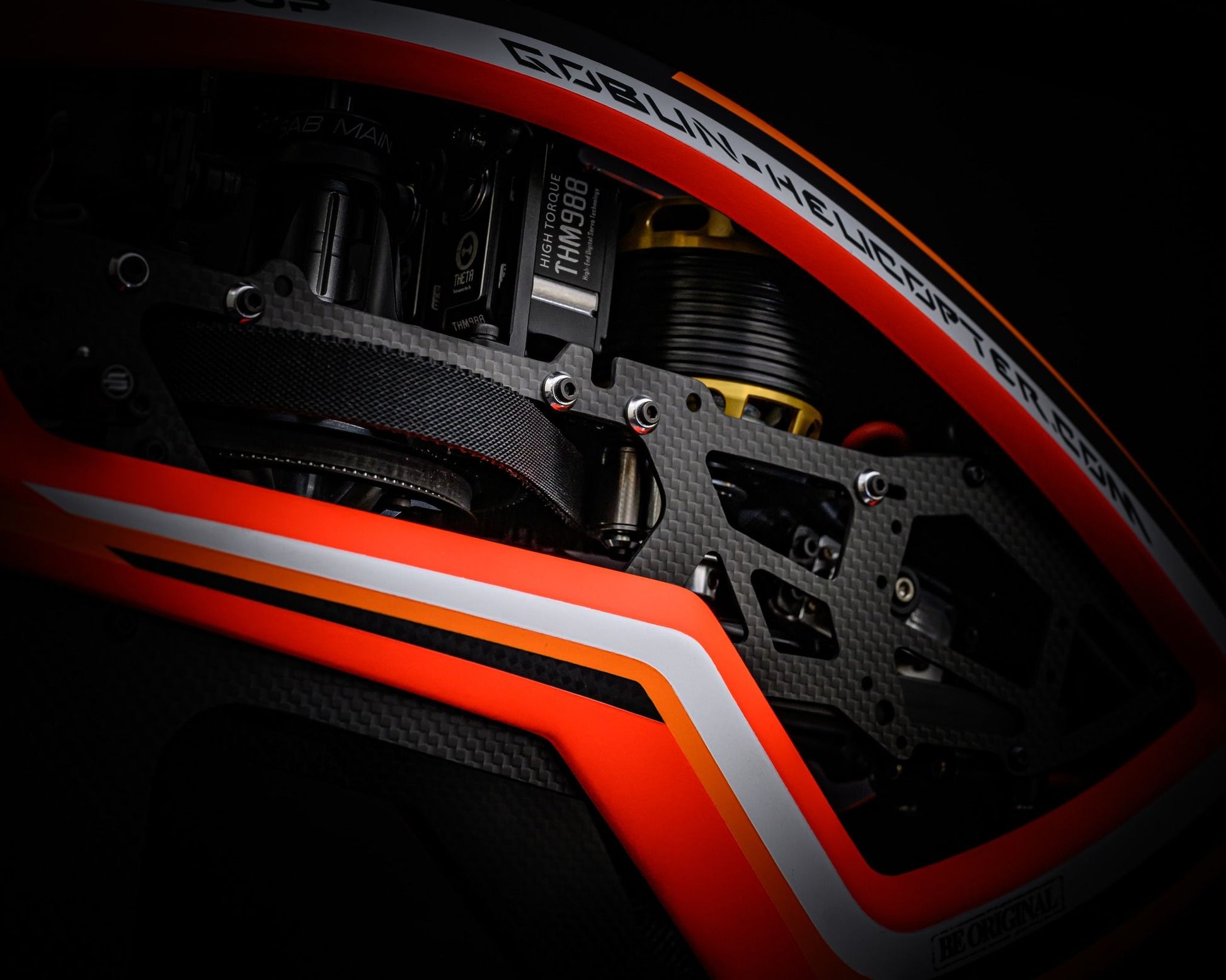

  • New, stronger motor belt transmission

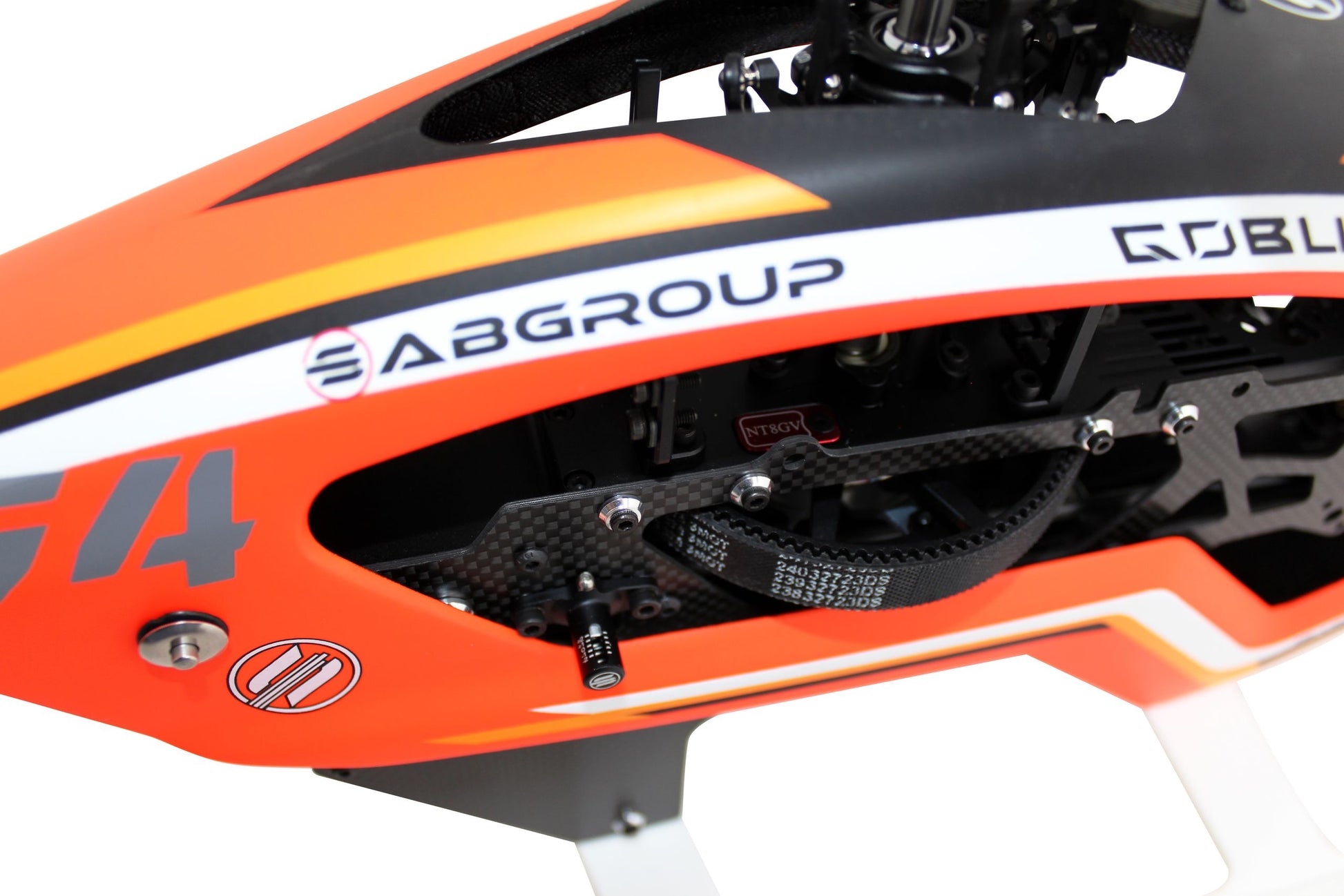

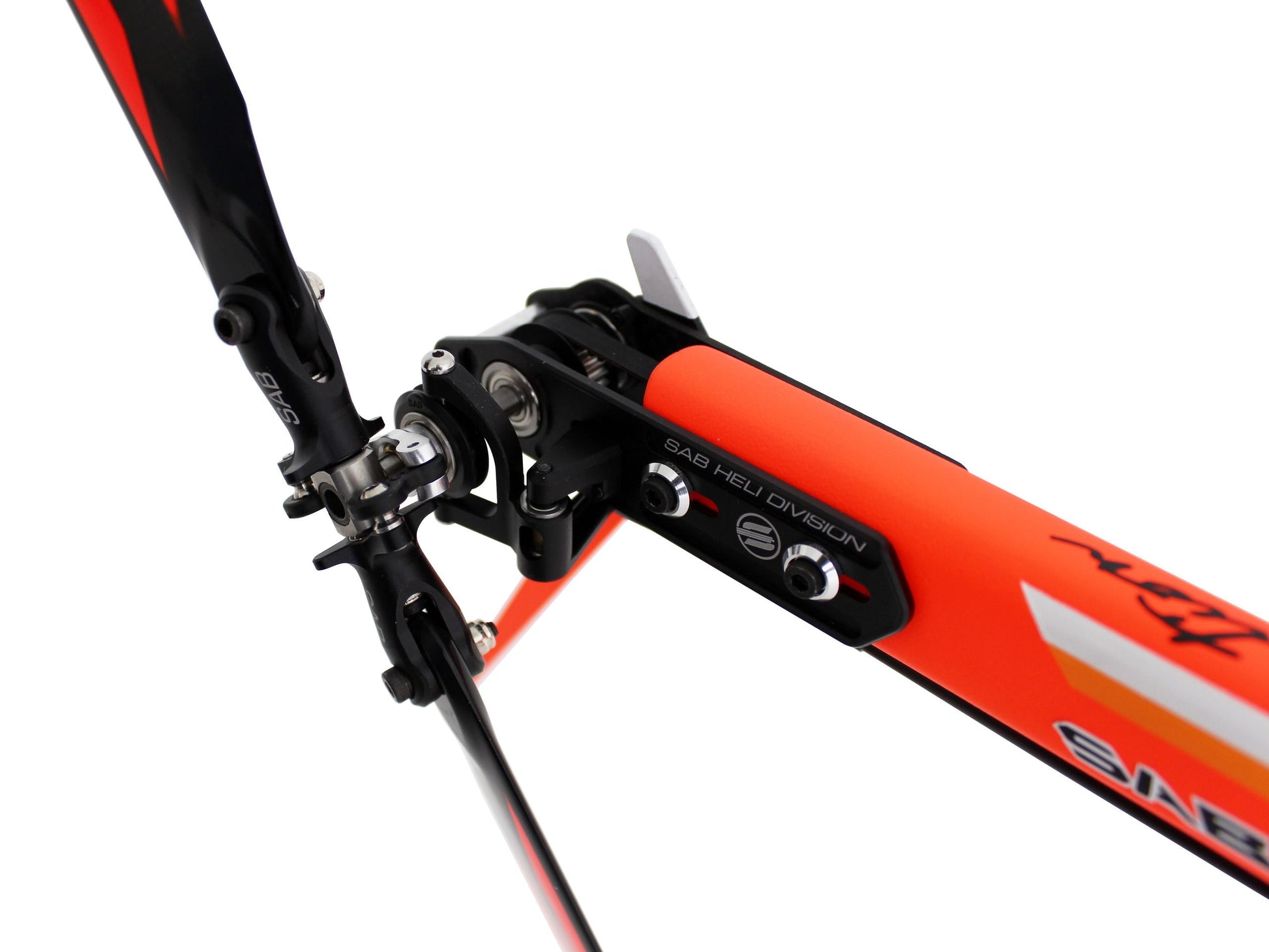

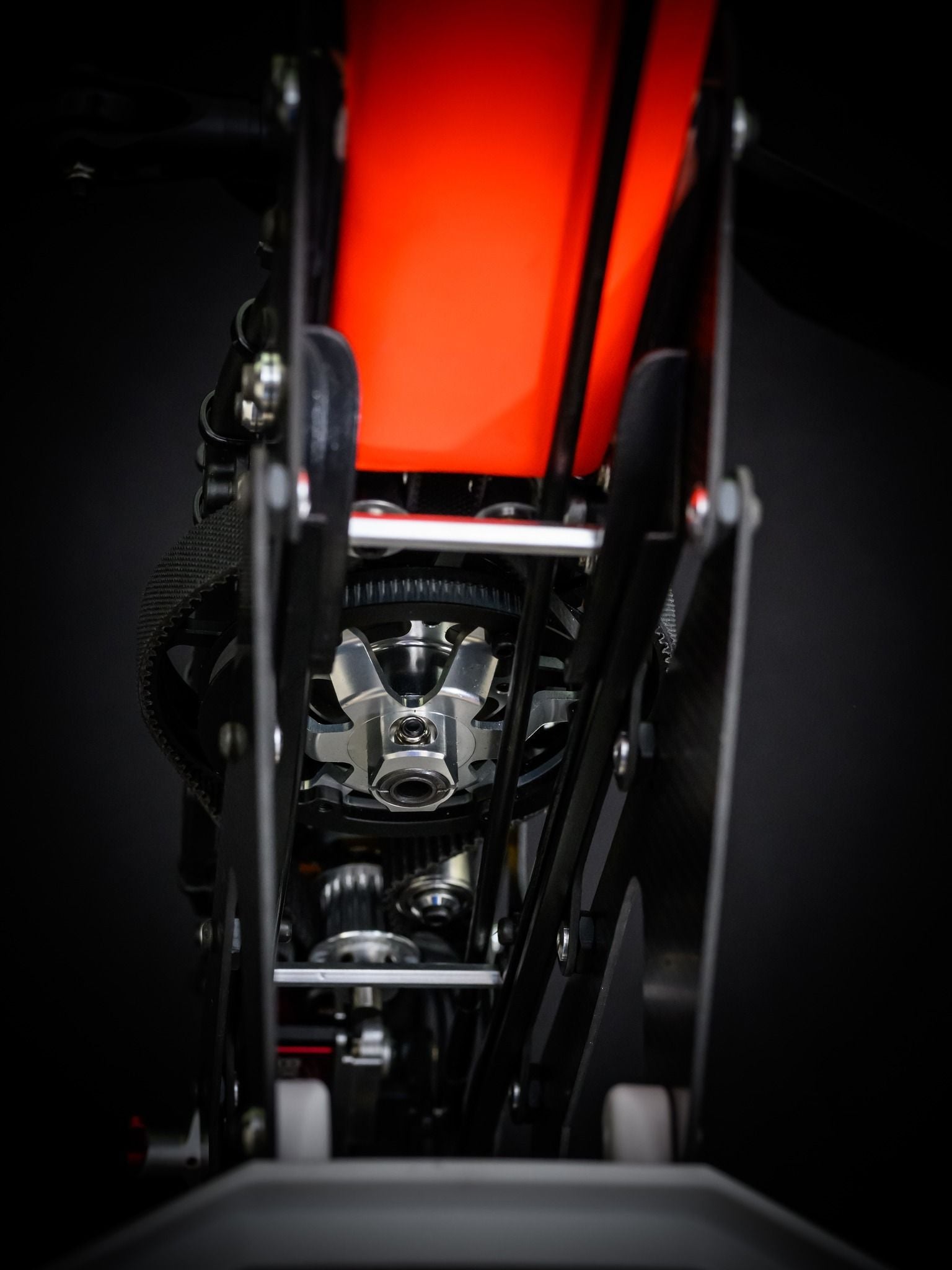

  • New, smoother tail belt transmission
  • Full Size tail servo compatible
  • 520mm main blades/82mm tail blades

The model supports a rear-inserting battery tray, allowing you to install batteries without ever removing the canopy.

Specs:

  • Airframe weight: 1894 gr (no blades, no battery, no electronics)
  • Main rotor diameter: 1220 mm (with 520 mm main blades)
  • Main blade length: 480 to 530mm
  • Tail rotor diameter: 222 mm (with 82 mm tail blades)
  • Tail blade length: 80 to 85 mm
  • Cyclic Servos: Mini size 35mm
  • Tail Servo: Mini size 35mm/Standard size 40mm
  • Main Rotor Ratio: 1: 4.47 to 5.88 (17T Motor Pulley Included)
  • Tail Rotor Ratio: 3.88.1
  • Main shaft: 8 mm, Tail shaft: 5 mm
  • Molded carbon tail boom
  • Typical motor: 6S, 800/900 KV
  • Battery room: 48x48x150mm

Kit Includes:

  • 17T motor pulley (other pulley sizes available)
  • 1 battery tray with integrated connectors
  • S520 Orange (520 mm main blades)
  • S82 Orange (82 mm tail blades)
